Using KMS Displays at Legacy POS

The Exit button closes this kitchen display Window.

If orders are currently assigned to this kitchen display you will be prompted to either Release Jobs or Keep Jobs.

oSelecting Keep Jobs will save the current order queue for this kitchen display.  The current orders will not be moved to another display.   Those current orders will only become visible again when this kitchen display is reopened.

oSelecting Release Jobs will release the current jobs from this kitchen display.  The released orders will be reassigned to any other kitchen displays which are on-line and sharing the same role as this display.  If no other displays are currently available, this kitchen display's outstanding orders will be sent to the Pending Jobs File.  Having unassigned jobs in the Pending Jobs File will set the network health indicator to yellow on any other kitchen displays.  Clicking the yellow network health icon will display the Pending Jobs File where unassigned jobs can be reclaimed.

The Kitchen Display Network button displays the kitchen display Network File which presents status information about kitchen display devices on the POS network.

The following information is available for each kitchen display:

•Device ID Column - This value is unique for each kitchen display.  It is comprised of the kitchen display's computer name and a number.

•Role Column - This displays which role which is currently assigned to each kitchen display

•Status Column - This column indicates the current status of each kitchen display.

oIf a display's status is On-Line, this indicates the display is running well and available to be assigned new orders.

oIf a display's status is Paused, the display is running well but not available to be assigned new orders.

oIf a display's status is Inactive, this indicates the kitchen display application has been closed and it can not be assigned new orders.

oIf a display's status is Non-Responsive, this indicates either a network, software or hardware issue is preventing normal access to this kitchen display.   Non-responsive displays are highlighted with a red background.

•Load Column - The load column displays the total estimated load in minutes for each kitchen display. See PLU Item Details > Make Time for the relevant PLU setting that is used to calculate production load.

The following buttons are available from the Kitchen Display Network File:

•Refresh Button - Click the Refresh List button to update the Kitchen Display Network list.

•Item Up & Item Down Arrows - Use the single up and down arrows to move up and down the Kitchen Display Network List one item at a time.  These buttons are located to the right of the Kitchen Display Network form.

•Page Up & Page Down Arrows - Use the double up and down arrows to move up and down the Kitchen Display Network List one page at a time.  These buttons are located to the right of the Kitchen Display Network form.

•Pausing/Unpausing Kitchen Displays - The status of kitchen displays can be toggled between On-Line and Paused mode from this form.  To set a kitchen display to paused mode, highlight an On-Line display, then click the "Set this device to Paused mode" button.  To change a paused display back to On-Line mode, select the paused display and then click the "Set this device back to On-Line mode" button.  Note: If this device has been configured to use Pass Through Mode, this button will be updated to toggle between Pass Through Mode and On-Line Mode.  See section below Product Assembly Workflow Tab > Pass Through Mode for more information about configuring Pass Through Mode.

•Stopping Non-Responsive Kitchen Displays - When encountering a non-responsive kitchen display, that display can sometimes be closed remotely from this form by clicking the "Stop non-responsive devices(s)" button.  This can be helpful when trying to restart a non-responsive display.

Configurable options for various features of the KMS are available from the System Settings button on the application toolbar.  Access to these setting require the password of user with POS Manager privileges.

            Local Settings Tab - This tab displays settings which affect this kitchen display only.  The following settings are available from this tab:

oServer Name (read-only) - This displays the computer name of the POS terminal which this kitchen display receives orders from

oDevice ID (read-only) - This displays the ID assigned to this kitchen display

oDevice Role - This identifies which role this kitchen display is assigned to.  Click the browse button to assign this kitchen display to a different role.  When a kitchen display is assigned to a new role, any orders currently assigned to the display will  continue to be assigned to this display.  To release these orders, exit the Kitchen display, then click on the Release Jobs button.  When this kitchen display is reopened, the released jobs will not be displayed.

oDevice Mode - A read only field which indicate the mode in which is KMS device will operate.  It is governed by the licensing options in the Redcat Helpdesk application.  Intelligent mode is the licensed version of the product, while Production Display Only is non-licensed and therefore contains limited functionality.

If the monitor of the KMS device is large or of a widescreen format he location of the order and item management buttons can be swapped from the side toolbar to within the active order window if desired.

The buttons will appear within the order window of only the ACTIVE order.

Note: If either Spy Mode or Executive View Mode are enabled, the Show Sticky Toolbar buttons will be disabled.

If the Track Order Roles setting is enabled, the system will assess all the items in a sale, track the role each item is assigned to, and list in the order window on the KMS device any other roles that have been assigned items in the same sale.  This is particularly useful for staff as they can see that other items are being prepared at a different section and can coordinate delivery of the entire order at the same time.

Please note: the roles are listed for information only and carry the following limitations:

•A strike cannot be applied to them.

•They will not print if the order is sent to a printer.

•They are not dynamically updated if further items are added to the sale which would be assigned to a role not already listed.


However, if an order is served and recalled, the order will retain the original tracked roles.

Note: If either Spy Mode or Executive View Mode are enabled for this device, the Track Order Roles option will be disabled on this local device.

Filtering Role Tracking

If Track Order Roles are enabled on a local KMS device, the user may filter the roles that need to be tracked on this device. This is useful if the kitchen or production area has a role for Pass or Co-Ordinator where all orders are to be displayed but where no production takes place.  The Pass role could be filtered from Role Tracking.

Filter the roles to be tracked by highlighting the relevant role in the Role Tracking section, on the Workflow Settings tab and choosing the Set On or Set Off button as desired.

Note: The Role Tracking filtering shown will apply to the local KMS device.  Tracking of relevant roles will need to be applied on each KMS device that has role tracking enabled.

Enable Spy Mode:

Spy mode is used where the operator needs to see the contents of a queue but does not control the completion of orders. ie. another operator is Serving off the orders on a different monitor.

A device that is operating in Spy Mode can:

•Navigate the screen independently, such as changing pages, launching the Order Summary, etc.

•Read all orders assigned to the selected Role, even if those orders are being load-balanced across multiple devices.

•Apply local ingredient and summary filtering settings, that may be different to the monitor it is reading from. For example, the main PASS monitor that is in Serve Mode may be viewing orders by product name, while the Spy Mode monitor views those same orders by Ingredient.

NOTE: Sale Type filtering (if in use) will be read from the monitor that is in Serve Mode

Spy Mode + Serve Mode:

Enabling Spy Mode with the addition of + Serve Mode enables the user to effectively double (triple or quadruple) the number of order windows visible AND retain the serve function.

It is useful when a large monitor is available with enough real estate to reasonably display multiple KMS windows.

Two (or more) instances of a KMS will be opened, situated on the monitor and assigned to the same role.  The second and subsequent instances will be tagged with Spy Mode AND + Serve Mode.

The instances will now replicate each other (show the same orders rather than load balance) and both will be reactive to their ‘serve’ buttons.  On the second and subsequent instances, use the Next Page button to display order boxes 9 through 16 (17 through 24 etc).

In this way number of order windows have effectively been increased.

Enable Executive View Mode:

Executive View mode will enable a KMS device which reads orders for the entire KMS network.
When Executive View mode is selected, the setting to Show sticky toolbar buttons is disabled, Enable Spy Mode is active then disabled, and the Order Toolbar is not displayed on the KMS Display Window.

When deploying an KMS instance in Executive View Mode it is not necessary to select a Role therefore configuration of a Role in the POS Network Hardware tree to support it is not required.

A device that is operating in Executive View mode can:

•Navigate the screen independently of any other KMS device, such as changing pages, launching the Order Summary, etc.

•Read and display all orders assigned to ALL ROLES.

•Dynamically update the status of items within each order based on their current status at each production station.  As strike is applied to items on a station, the item will also appear with a strikethrough on the Executive View along with the name of the Role where the strike was applied. When all component items of the order are finalised on each of the production stations the order will be removed from the Executive View.

Note: Where an individual sale item has been sent to multiple serve stations it will in certain circumstances by displayed multiple times on the Executive View.  This occurs when the strike status of the item varies between stations (that is, the item has a strikethrough applied on one station but not the other).

Incoming Orders Sound Alerts:

To ensure that orders are not missed, an audio alert can be activated to play when an order is received.  A different alert can be configured to play when online orders are received as these orders generally do not coincide with a customer standing in the store.  Users can customise these alerts by providing their own .wav files.

The .wav files must reside in the T1 directory of the Master terminal, and while you can use any .wav file, the naming convention must be:
Standard Alert:        POSALERT.WAV
Web Order Alert:        POSALERT_WEB.WAV

The sound alert can be tested using the Test Alert button(s).

Validation of Sound Alerts:

The system will validate the Incoming Order Sound Alerts when the setting is enabled, or when the Test Alert button(s) are used.

If the relevant .wav files are not found in the T1 directory a message will be displayed.

Display Settings Tab

Some settings are applicable to ALL KMS devices on the network and can be applied using any KMS device.  The Display Settings tab contains the following settings and information.

If you wish  a device to deviate from the global settings, you can indicate on this tab by selecting the Local option and changing the programming.  Note: your local settings will not take effect until the application has been closed re-launched.  This is useful when a KMS role has a different operational purpose, eg. it takes longer to make a burger than it does to make a coffee so it makes sense that he Grill role timer settings would be greater than the timer settings for the Barista role.

Kitchen displays allow colour coding of different Sale Types, and time-triggered colour coding of the order window to indicate when an order has been waiting for a long period of time.  The warning and urgency colours, and the warning and urgency time periods can be configured from this form.  These settings include visual alerts on elapsed timer thresholds for orders, and assigning colour coding to POS Sale Type headers.

oTime Warning (colour) - This setting assigns the background colour for orders which have been displayed for longer than the assigned Timer Warning time value.  To set the warning colour click the first browse button (to the right of the warning colour), select the colour then click the OK button.

oThe Timer Warning (time) - This setting is shown to the right of the Timer Warning colour.  This indicates how long an order will be displayed before having the order background colour set to the Warning colour.  Click the up and down arrows to increase or decrease the Warning time. By default, the Warning Time is 10 minutes.

oTimer Urgent (colour) - This setting assigns the background colour for orders which have been displayed for longer than the assigned Timer Urgent time value.  To set the urgent colour click the first browse button (to the right of the urgent colour), select the colour then click the OK button.

oTimer Urgent (time) - This setting is shown to the right of the Timer Urgent colour.  This indicates how long an order will be displayed before having the order background colour set to the Urgent colour.  Click the up and down arrows to increase or decrease the Urgent time. By default, the Urgent Time is 15 minutes.

oPending Orders Threshold - This setting indicates how long an order can wait without being assigned to a kitchen display before it is considered a dead letter job.  If an order has not been assigned to a kitchen display after this period, the kitchen display network will set the network health to yellow.  This is shown as a yellow square on the main kitchen display window next to the Network Health text.  Clicking the yellow square will load the Pending Orders list which displays a list of pending orders not received by a kitchen display for longer than this period.  The Pending Orders list can be used to reassign orders to kitchen displays.

oDelete jobs older than - This setting allows the KMS system to remove any orders which have been waiting for more than a specified number of days.  Click the up and down arrows to increase or decrease the number of days to wait before removing orders.

oUse Default Values - Click this button to return the default values for the Timer Warning Colour, Timer Warning Time, Timer Urgent Colour, Timer Urgent Time, and Delete jobs older than settings.

oSale Type Colours - Orders can be assigned a variety of sale types including Delivery, Dine In, Drive Through, Pick Up, Table Service, Takeaway, Web Ordering and None (when no sale type has been assigned to the order at POS).  The Sale Type Colours settings allows you to set colour coding of order headers.  This allows kitchen staff to easily identify the sale type of an order at a glance.  A different colour can be assigned to the header background colour and header font colour for each sale type.

oTo set the background colour for a sale type:

❑Select the sale type which you wish to change

❑Click the Set Fill Colour button.  This will display a colour picker form.

❑Select the desired colour and then click OK.

oTo set the text colour for a sale type

❑Select the sale type which you wish to change

❑Click the Set Font Colour button.  This will display the colour picker form.

❑Select the desired colour and then click OK

oTo set the "table' label for a sale type

❑Select the sale type which you wish to change

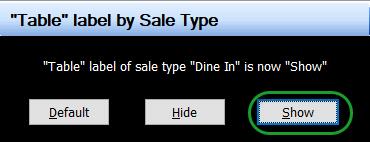

❑Click the Set "Table" Label button.  This will display the "Table" Label by Sale Type form.

❑Select the desired option and then click OK

Note this setting works in conjunction with the Display table numbers and Hide “Table” label settings.
For example, if you want to hide the “Table” label for all sale types except Dine In you could:

Turn ON Display table numbers
Turn OFF Hide “Table” label (default)
then select the Dine In sale type and use the Set “Table” label button.
Choose Show.

Set the ‘Table’ label for remaining sale types to Hide.

The ‘Table’ label will then only be displayed for the Dine In sale type.

Close and reopen the application on each kitchen display for new Sale Type Colours to be applied.

Setting Fonts:

The fonts used for kitchen displays can be customised from this section.  A preview is available to view output changes as they are made.  If you want to change the fonts an colours for the order windows (by sale type) for just this device ensure that the Local radio button is selected.

Order List Box -.  This allows the user to set the font size of Items listed in each order.  Tick the Bold option to display order items in bold.  Tick the Auto Size List Font Size box if you want the system to auto size for best fit.

Order Header and Buttons -.  This allows the user to set the font size on the order header and buttons.  Tick the Bold option to display the header in bold.    Tick the Auto Size Header Font Size box if you want the system to auto size for best fit.

Display Table Numbers - Enabling this function will display each order's table number in the order header.

Hide "Table" label – Enabling this function means any table numbers displayed will not begin with text saying "Table:" placed.

Use Default Values - Click the Use Default Values button to re-assign device fonts to system default values.

If you want the system to apply font sizes to best fit the real estate of the order window, use the Auto Size List Font Size and Auto Size Header Font Size tick boxes.

To change the font applicable to the role names displayed due to the Track Order Roles settings, use the Set Tracked Order Roles Font Style button. Your changes will preview on the button text (like this).

Reset Listbox Format - If you are unhappy with your changes to the listbox format, click the Reset Listbox Format button to revert to the most recently saved configuration (not necessarily the default values). This will force a restart of the application. close the kitchen display.

Product Filtering

Product filtering settings determine which orders are to be displayed on this KMS device according to Sale Type.

An IPD device may be configured with both Product/Main Item PLUs and Production Ingredient PLUs assigned to the KMS Role via Category printing.

Production ingredients are assigned to PLUs to indicate to the kitchen what the item is that needs to be produced when a PLU is sold. For example, it doesn’t matter if the item sold is a Beef Burger, a Burger with the Lot, or a Cheese Burger – in each case the grill needs to produce the same beef pattie.

See the later section on Programming Production Ingredients for detailed instructions on how to achieve this.

Ingredient Filtering options allow for Orders in the main window to be displayed by product name, whilst the Order Summary can be displayed by Production Ingredient (or vice versa if desired).

You may also configure the Order Summary to include items from only the local KMS device, or from all KMS devices in the network, depending on the operational requirement.

Accepted Sale Types.

This setting will allow you to choose to display only specific sales types on a device. You may wish to assign only sale type where the items need to be plated to one display (Dine In), while sale types where the items need to be wrapped (Drive Through, Delivery and Takeaway) display on another.

To set Sale Types accepted by this KMS device:

•Display the list of available sale types using the list button to the right of the Accepted Sale Types window.

•Highlight the desired Sale Types and choose the Select button to assign.

A forced restart will be performed after which the Sale Type filtering will be applied.

Order Ingredient Filtering.

Order Ingredient Filtering applies to the items shown in the main window order boxes, on this device only. The default setting is ‘None’, meaning the order boxes will display all assigned items.

Choosing Show Products Only will instruct the KMS device to filter out the production ingredients and only display the Product PLUs.

Choosing Show Ingredients Only will instruct the KMS device to filter out the Product PLUs and only display the Production Ingredients.

A forced restart will be performed after which the Order Ingredient filtering will be applied.

Some details are included in orders and displayed by default which users may choose to exclude if desired.

If you do not wish to include details which would normally display in the footer of online orders, exclude these using the Hide web order details (footer) setting.

Similarly, if you do not wish item grouped by class, exclude the class headings using the Exclude class headers setting.

Note: these changes take effect immediately and any active order windows will be updated.

Summary Screen Ingredient Filtering.

Summary Screen Ingredient Filtering applies to the items shown in the Order Summary list, when launched on this device. The default setting is ‘None’, meaning the Order Summary will tally all assigned items, regardless of whether the order boxes are being filtered or not.

Choosing Show Products Only will instruct the KMS device to filter out the production ingredients and only display the Product PLUs.

Choosing Show Ingredients Only will instruct the KMS device to filter out the Product PLUs and only display the Production Ingredients.

The Order Summary will display the list of items grouped by Class, if an unbroken list is preferable, enable the Exclude Class Headers option.

Summary Screen Device Filtering.

To cater to the particular operational requirements of the kitchen, the Order Summary on a particular KMS device may be set to display either a tally of items assigned to this device only or a tally of all items currently in the queue across all KMS devices in this network.

Swap the radio button as required between:

•Include orders assigned to this device only (default), or

•Include orders from all devices.

Workflow Settings Tab -

Workflow settings will allow the user to define how an order should be handled when completed at this station. In addition to the default workflow, a different workflow may be programmed for each sale type if desired.

A Product Assembly Workflow can be created by defining which role the order should be passed to when completed. The final role will ‘serve’ the order. For example, when an order is recorded as ‘done’ at the dress bench it could be transferred to a KMS device assigned the pass role.

Alternatively, rather than transferring the order to another KMS role, you may choose to Push to print the order at a designated production printer instead of transferring to another KMS role. Using this facility, you make also choose to automatically send a docket to Print Upon Item Strike if an item is completed in advance of the entire order.

If using a Product Assembly Workflow, consider what is to be shown on each KMS device and at what time when assigning categories to the KMS devices. For example, if all orders are going first display at the Entrée Role and nothing will be shown on any other Role until the Entrée role is recorded as Done, the Entrée Role will have full category assignment and the other Roles will have nothing assigned to them.

This same logic applies for a Printer if it is to be included in the Workflow. No Categories should be assigned to the printer so that it will only print when the user clicks DONE and passes the job to it.

This tab allows you to define how orders progress from this kitchen display.

Default Workflow.

The Default Workflow for orders on this KMS device can be:

•Serve: Orders will be deemed as finalised and retired

•Push to another role:  Orders will be released and made available to a specific Role. If there are multiple devices assigned the target Role the system will automatically load balance between the devices and assign the order to the device with the least load. If you choose this option, click the browse button and select the KMS Role that orders will be released to.

•Push to another Kitchen Display. Orders will be released and sent to another specific kitchen display.  If you choose this option, click the browse button and select the KMS device | Role which orders will be sent to. If the workflow is Push to Role, the option to Reset job timer when pushed is also available - the time elapsed for the order will start from 00:00 when the order is received at the target role.  This is especially useful if you need to determine how long an order may have been waiting for collection.

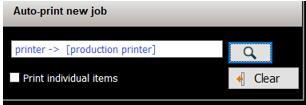

•Push to a Printer.  Orders will be retired and sent to a production printer (Push to Print).    If you choose this option, click the browse button and select the production printer to which orders will be sent.  If the workflow is Push to Printer, the option to Print in Chronological Order is also available - items will print in the order they were entered at the POS instead of grouping by Class as they will on the display.

Note: When utilising Push to a Printer inverse printing of instructional categories as defined in the Categories File will be respected.

Workflow by Sale Type.

To provide ultimate control over how orders are processed from this KMS device, the workflow can be programmed for each individual sale type.

To do this:

•Highlight the sale type and choose the Set Workflow button

•Program the workflow details, including the relevant ‘push’ option
if appropriate and choose the OK button to save.

Note: If you choose Push to a Printer for a sale type workflow, you may also choose to select the Print original order format option. This is useful if the global setting Print in Class Order is enabled but for particular circumstances you require a production
docket exactly as originally enter at the POS.

To disable a Product Assembly Workflow, choose the Clear button to the right of the ‘push’ setting to remove the next assembly station.

When a next assembly station has been configured, the SERVE button will change to DONE. If you are using a global order toolbar, it will also show the details of the next Assembly Station programmed.

If you are utilising a sticky toolbar within the order window the details of the next Assembly Station will be shown in the network health statistics window.

General

The General settings provide further options for orders processed by this KMS device.

•Enable Print docket upon item strike if desired by placing a tick in the box.  As the strikethrough is applied to each item a docket will be sent to the printer containing only that item

•If you choose to Exclude Striked Items upon Serve only the active items remaining in the sale will print when the order is marked as Done.

•If Auto-strike remaining items upon serve is enabled, any items in the order that are not already shown with a strike will have a strikethrough applied.  This is useful if an Executive View mode instance is in use.

Note: The Print Docket Upon Item Strike and Exclude Striked Items upon Serve options are ONLY available if the default workflow is Push to a Printer. It is therefore recommended that if any sale type requires a Push to Print workflow this should be programmed as the Default Workflow. Sale types that do not require Push to Print should then have individual workflows programmed.

Pass Through Mode

Pass through mode allows orders to be sent to a different kitchen display when the kitchen display is Paused.

To enable ensure the Enable "Pass Through Mode" when this device is paused setting is ticked, click the browse button and select the KMS device | Role which you would like orders to be sent to.

To disable this feature, un-tick the Enable "Pass Through Mode" when this device is paused setting.

When this setting is enabled the “Set this device to Paused mode’ button in the Kitchen Display Network file becomes a ‘Set this device to Pass Through Mode’ button.

A visual alert is displayed in the KMS Status on the main display.

Cloud Notifications

Enabling this setting will send a SMS to the customer's mobile number collected by the POS at the time the order was placed. (To learn more about collecting the customer mobile number at POS click here).

Choose the relevant notification from the Report this job with the notification drop down box.  Usually this would be Ready for Collection.

Print on Demand

On occasion operational requirements may mean that a printed docket is needed for a specific order without consistently printing production dockets for all orders.  From time to time, it may be that a specific item in an order has special instructions (eg. gluten free) and you need a docket to accompany just that item.

To enable this functionality, you can define a production printer in the Print on Demand setting by clicking on the browse button to the right of the field and choose a printer from the list of production printers currently available in the network.

Please note: the chosen production printer does not need to have categories assigned to support the orders that will be sent from the KMS.

Defining a printer in the Print on Demand setting will enable the Print Order and Print Item button on the Order Toolbar.

If you do not wish to include items that have already have a strikethrough applied when issuing a Print Order command, place a tick in the Exclude Striked items upon Print Order box.

If you wish to emulate the POS setting ‘split production print jobs’ when sending the order/item(s) to the printer ensure the Print Individual Items setting is turned on.  This will print one docket for each individual item (instructions will print with parent item).  The order header details will print on each docket and each will include the #/total # (1/3, 2/3, 3/3 etc ) so that all items of the same order can be easily recognised.

Auto-print New Job

If you need new orders to automatically print when received, this can be achieved by assigning a printer from the list in the Auto-print new job section.

If you wish to emulate the POS setting ‘split production print jobs’ when sending the order/item(s) to the printer ensure the Print Individual Items setting is turned on.  This will print one docket for each individual item (instructions will print with parent item).  The order header details will print on each docket and each will include the #/total # (1/3, 2/3, 3/3 etc ) so that all items of the same order can be easily recognised.

This is useful if a docket is required to accompany each order, or a sticky label required to affix to items.

        Other Tab

The network paths for the following configuration files are displayed for reference.

•Global Configuration File

•This Device Configuration File (all IDP sessions on this computer)

•This IDP Session Configuration File

The following buttons will:

Application Log        Open the Application Log applicable to the IDP network.

Reset App Version        Will reset the version recorded for the application causing the system to check for update instruction upon re-entry.

Restore Default Window Sizes        Will restore all windows applicable to the KMS device to the default settings.

The following settings can be applied:

Application Restart (hours)        Setting a value other than 0 will cause kitchen displays to restart in hourly intervals of the entered value.

Poll Cycle (seconds)        This indicates how frequently (in seconds) kitchen displays will check for new orders.

        Serve All Orders Button - This button is shown in red at the far right of the System Settings form.

It is possible to serve all orders for a KMS device simultaneously.  This process will require POS Manager privileges to complete.

Access the System Settings button on the toolbar.

On the right hand side of the screen is a Serve All Orders button.

A message will be displayed asked for confirmation to serve all orders.

Choose Yes to confirm.  All outstanding orders for this KMS device will be removed from the production queue.

Note:  If product assembly workflow is enabled on this KMS device, all outstanding orders will be passed to the next device in the workflow.

The Orders Summary button on the toolbar will display a list indicating the total order quantity of each PLU type required to complete outstanding orders. This may be only items required for orders applicable to this KMS device, or for all KMS devices on the network according to the setting defined under Summary Screen Device Filtering.

The Orders Summary will display either PLU items, or Production Ingredients according to the setting defined under Summary Screen Ingredient Filtering.

Detailed or Aggregate View

The view can be toggled between Detailed View which compresses all like products but retains all instructional items with the parent product, and Aggregate View which collates and compresses all items including instructional items. The aggregate view will also list items in alphabetically order, rather than the order that the items are found in the queue. This is intended to provide relatively consistent positions for items within the Summary list, so they can be quickly located/viewed in a busy environment.

Resizing and Position

The Order Summary window may be re-sized in both width and height and positioned on screen as desired.  These values will be applied each time the window is opened.

Status

The status of the Order Summary (ie. open or closed) is saved upon application exit. If the summary was left open it will be launched automatically when the application is re-opened. The Order Summary window can be launched when there are no orders in the queue.

If you have configured sale type filters for this kitchen display, the assigned filters can be viewed by clicking the Current Sale Type Filters button on the Kitchen Display Toolbar.  If no Sale Type Filters have been configured, the Current Sale Type Filters button will be greyed out.

Sale Type Filters can be configured by selecting the System Settings button from the Kitchen Display toolbar, then clicking the browse button next to the Accepted Sale Types list on the Local Settings Tab.

Status information is displayed at the top right of the main kitchen display window.  The following information is available from the Status Area:

•Kitchen display Status - Can be On-Line, Off-Line or Paused, or pass through

•Sale Type Filtering - Can be Yes or No

•Total jobs - Indicates the number of outstanding orders assigned to this kitchen display

•Total load - Indicates the estimated total load (in minutes) of all outstanding orders assigned to this kitchen display

•Total items - Indicates the total number of items from all outstanding orders assigned to this kitchen display

•Parked jobs - Indicates the number of orders which have been parked instead of being served. Parked orders can be managed through the Recall Order button.

•Oldest job - Indicates the time (in minutes) that the order at the front of the queue on this kitchen display has been waiting
